Series CL-W

Enquire now

HIRE SALES

Technical Specifications

Manufacturer

Righetti

Lifting Capacity
375 kg

Gross Weight

61 kg

Rotation

90 º

Tilting

90

Pad Diameter

1,000 x 500mm

Pads

1 (divided in to four areas)

Power

110 volts

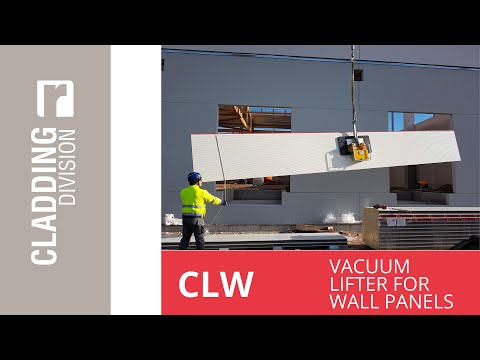

Righetti CL-W vacuum lifter

The Righetti CL-W vacuum glass lifter is designed to lift both glass and wall cladding panels with equal ease.

Technical Performance

  • Maximum lifting capacity 375kg
  • 1 suction pad (1000mm x 500mm) divided into four sections
  • 900 manual rotation and 900 manual tilt
  • Battery operated
  • Enhanced safety with dual independent circuit vacuum system (meets EN13155)
  • Audible and visual low vacuum alarms
  • Wireless remote control
  • Removable lifting arm for operation in restricted space
  • Lifter weight – 61kg
  • Lifter dept – 280mm

The CL-W vacuum glass lifter’s advanced battery system controls energy consumption to maximise lifting performance between charges.

Safety is enhanced with a dual action command for load release so glass and cladding panels are kept secure at all times.
