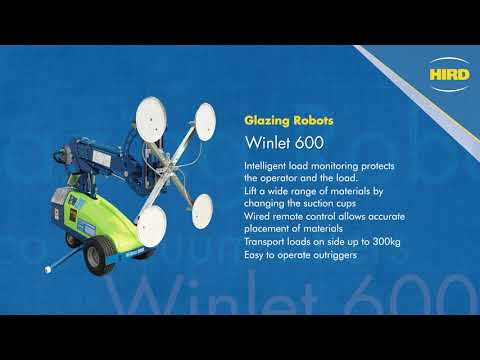

Winlet 600

Winlet - Glazing Robot
Winlet – UK and Ireland Distributor

The Winlet 600 model combines superior lifting capacity and reach without compromising its compact design. Glass installation can be carried out more quickly with smaller teams, improving productivity and reducing costs.

Safety is also greatly improved through reduced manual handling, while risk of the load or surrounding structures being damaged is also reduced.

Anatomy of a Winlet Glazing Robot

Packed with technology

Explore the key components on a glazing robot

Contact Hird today about Winlet glazing robot hire.

Winlet 600
winlet_600_glazing-robot
winlet_600_wireless_remote_control
winlet_600_eco_glass_lifting
winlet_600_865kg_gross_weight
winlet_600_300kg_max_side_capacity
winlet_600_2.8m_max_height

Max. Working Height

3,300 mm

Max. Extension

1,300 mm

Extension Capacity

300 kg

Side Capacity

300 kg

Linear

100 mm

Fine Lift on Jib Head

190 mm

Rotation

360 degree

Tilt

180 degree

Suction Cups (Glass)

4 @ 350 mm Ø

Total Machine Weight

1,060 kg

Light Weight - excluding counterweights

865 kg

Power Source

Battery

110v on-board charger

Remote Control

Wired

Need to know more about this Glazing Robot?

Talk to the Hird Team today Contact Us

Diagrams

winlet_600_working_diagram_pick_and_place
winlet_600_working_diagram_pick_and_place
winlet 600 working diagram reach
winlet 600 working diagram reach
winlet_600_dimensions
winlet_600_dimensions

Training from Hird

Hird provides a comprehensive operator training service, including:

Training can be delivered at one of the purpose-built Hird Training centres, or at your own site, if facilities are suitable.

Most courses can be tailored to suit production requirements and business needs.
