Maeda MC405

Enquire now


Technical Specifications



Power Source

Diesel or Electric

Max Working Height

(20.7m with Jib)
16.8 m


W 1380 mm
H 1980 mm
L 4980 mm

Maximum Swl
3.83 t

Maximum Working Radius

16 m


7.5 kw



Download PDF

Performance at a glance

Max Working Height

(20.7m with Jib)
16.8 m


1380 mm

Maximum Swl

3.83 t

Maximum Working Radius

16 m

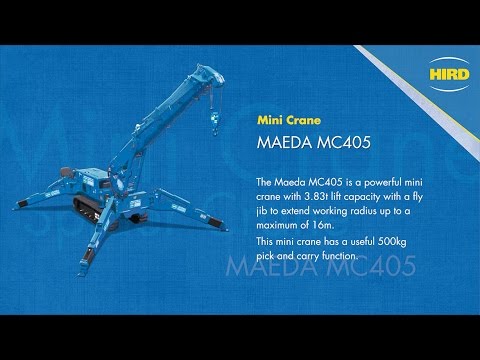

The Maeda MC405 mini crane is a powerful mini crane with 3.83t lift capacity with a fly jib that increases maximum tip height from 16.8m to 20.7m. This mini crane has a useful 500kg pick and carry function.

Key features of this mini crane

  • 500kg Pick & Carry Duty
  • Sheaves Protected Inside Boom
  • Programmable Moment Limiter
  • 4 Fall / 2 Fall Hook Block
  • Automatic Hook Stowage System
  • Tilt Sensor/Alarm
  • Powerful Two Speed Winch
  • Hydraulic Disc Brake
  • Remote Control
  • Outrigger Interlock System
  • 500kg Searcher Hook

The Maeda MC405 mini crane is a key machine in the Hird mini crane hire fleet. It can be combined with a range of mini crane attachments to carry out a wide range of tasks that require materials lifting and handling.

Sectors where clients benefit from this mini crane’s versatility include:

  • Construction
  • Glass installation
  • Facilities management
  • Factory maintenance

Hird can provide fully-trained mini crane operators, experienced in all the sectors above, to fulfil your lifting needs.

Contact us now about mini crane hire. We’re ready to help

Enquire Now


Mini crane training from Hird

Hird provides a comprehensive mini crane operator training service, including

CPCS A66 Compact Crane Training Course

Training can be delivered at one of the purpose-built Hird training centres, or at your own site, if facilities are suitable.

Most courses can be tailored to suit production requirements and business needs.
